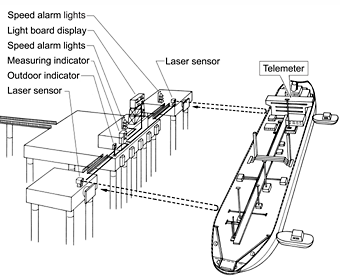

Documenti Collegati     This laser docking ranger measures and calculates the distance and speed of the ship approaching the berth, providing the operator on the ship with such information on the large-scale display or on the radio for bring the ship alongside the berth free from danger.   Caratteristiche Can operate even with small amounts of reflection. The measurement point can be checked visually to confirm laser transmission from the berth to the ship. Easy confirmation of laser sensor function Short pulse system provides very accurate measurement.   Caratteristiche Tecniche Principali SRD-303i Laser Docking Ranger Measuring items Relative distance and speed of bow and stern to the berth Sistema di misurazione Laser pulsante ad impulsi brevi Measuring range Distance: -1 to 199 m Speed: Within ± 99 cm/sec (+: bearing, -: off-bearthing) Incoming angle of vessel to the berth: Within 15° Display system Measuring indicator: 17-inch color TFT LCD display Display items Distance: 3 digits in increments of 1 m / 10 cm less than 10 m distance Speed: 2 digits in increments of 1 cm/sec Alimentazione 100 Vca (50/60 Hz) Temperatura operativa Da -10 a +50°C Per ulteriori informazioni contattare: >>> Apel Mar Technology Srl Measuring Indicator Outdoor Indicator Laser Sensor     Light Board Display (Option) Speed Alarm Lights (Option)
