APEL MAR Distributore Ufficiale per l'Italia COURSEMASTER

OPTIONS

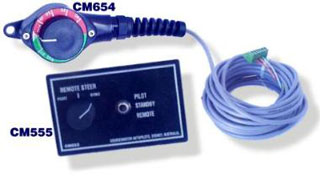

Remote Helms


CM555 - Remote helm, panel mount
CM654 - Remote helm, heavy duty commerical hand steering

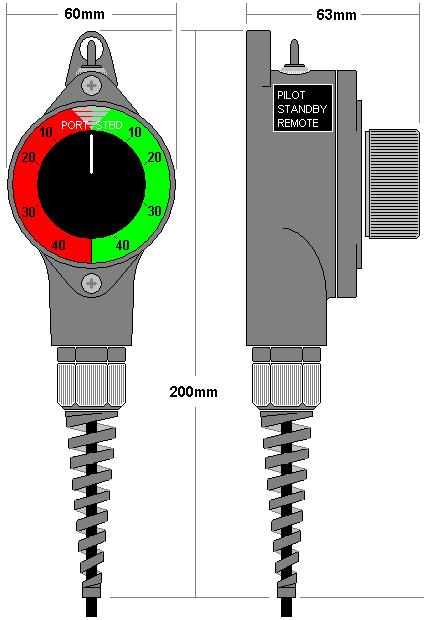

CM654 Dimensions

Electric Wheel Steering

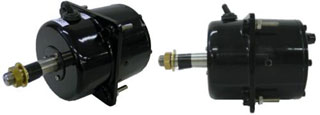

CM656 - Electric wheel steering, with Pilot / Remote steer switch and 3 turns lock to lock, including 290mm stainless steel wheel

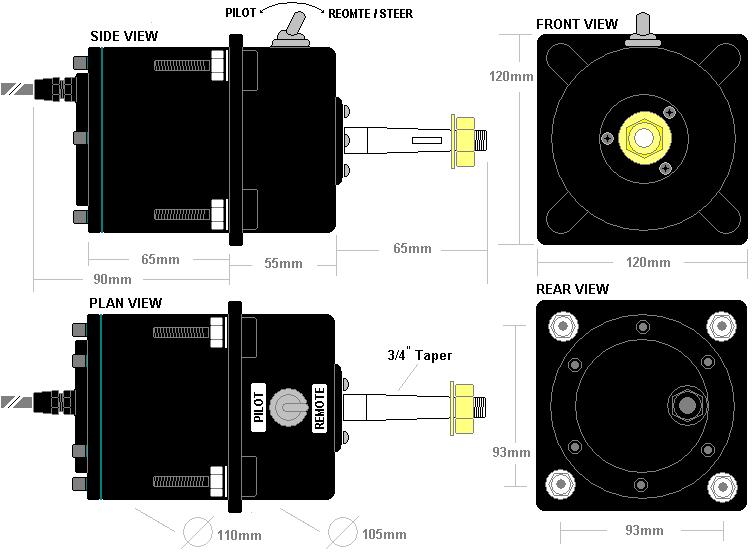

CM656 Dimensions

Jog Lever


CM551 - Jog lever to suit CM800/850, CM650 and CM880

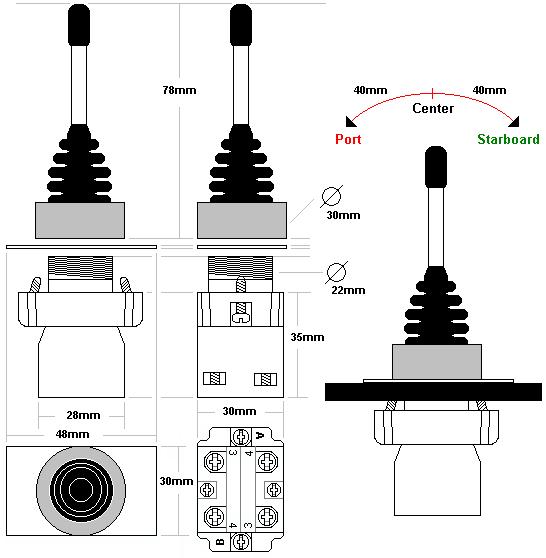

CM551 Dimensions

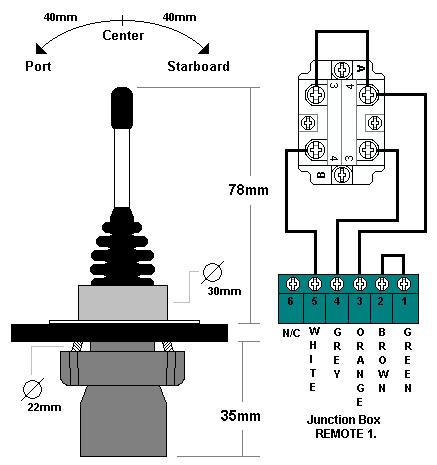

CM551 Wiring

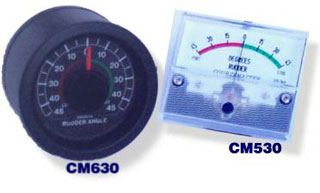

Rudder Angle Meters


CM530 - Rudder angle meter, 65mm x 60mm
CM630 - Rudder angle meter, water proof, back lit, 78mm diameter

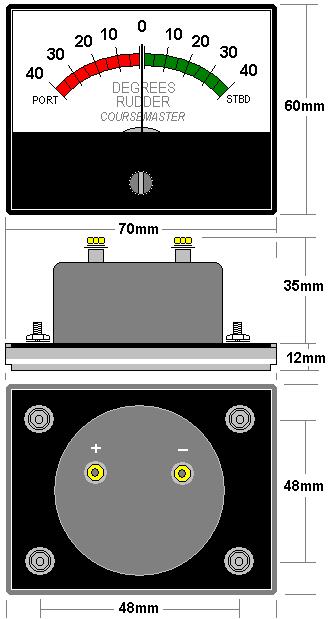

CM530 Dimensions

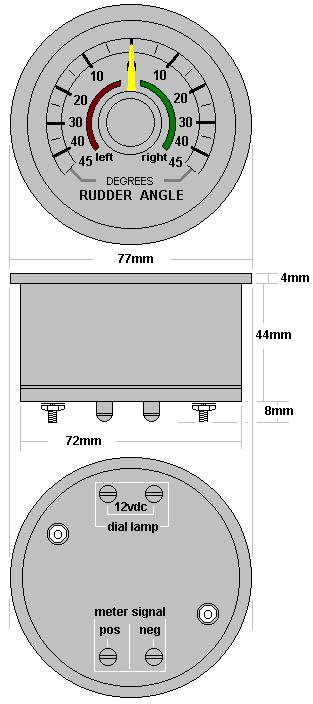

CM630 Dimensions

Heavy Duty Rudder Angle Meter

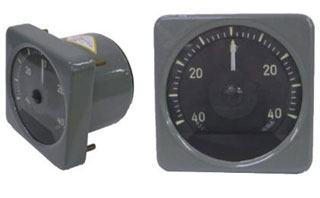

CM730 - Rudder angle meter, water proof, back lit, 12VDC / 24VDC, 100mm diameter

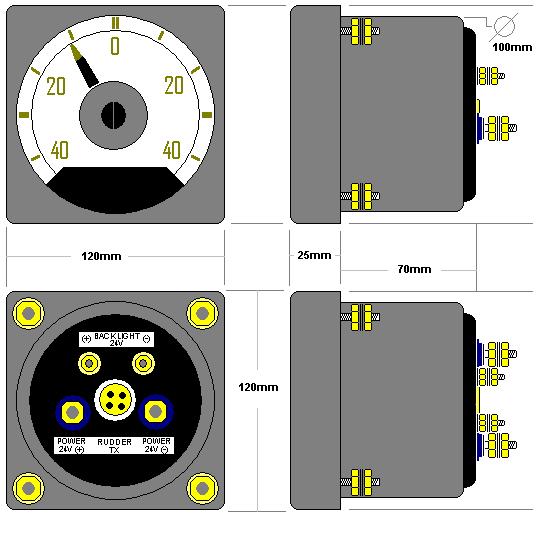

CM730 Dimensions

Bracket Mounting Kits - CM800 & CM850 Controllers
CM805 - Trunnion bracket kit to suit CM800 & CM850

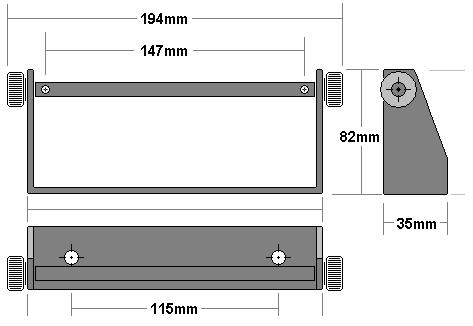

CM805 Dimensions

Heavy Duty Rudder Feedback
CM125S - Upgrade to heavy duty rudder feedback, when ordered with
system, replaces standard rudder feedback

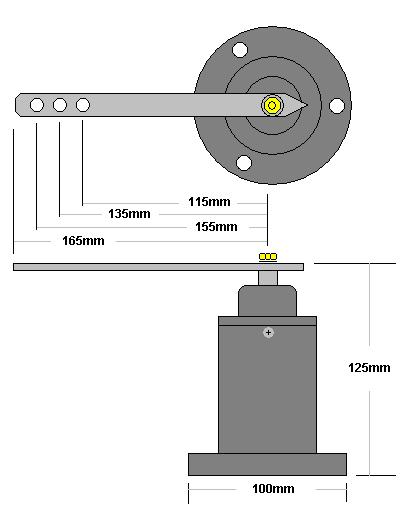

CM125S Dimensions

Rate Gyro

CM626 - Rate Gyro and software, for ultimate autopilot control; Bulkhead mount

Tell me more about - Rate Gyro

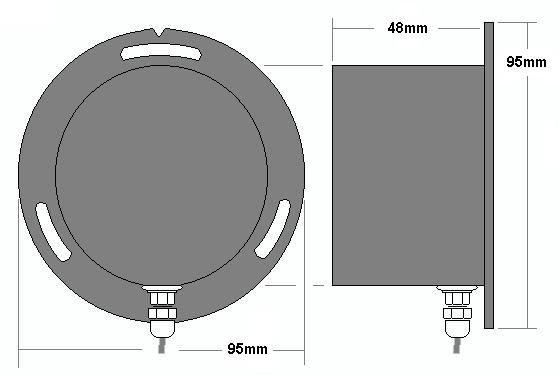

CM626 Dimensions
Please contact Coursemaster Autopilots or your local dealer to discuss drive unit selection, as vessels of the same size can vary in rudder loading. We can advise on the most suitable pilot and drive selection for your vessel.
