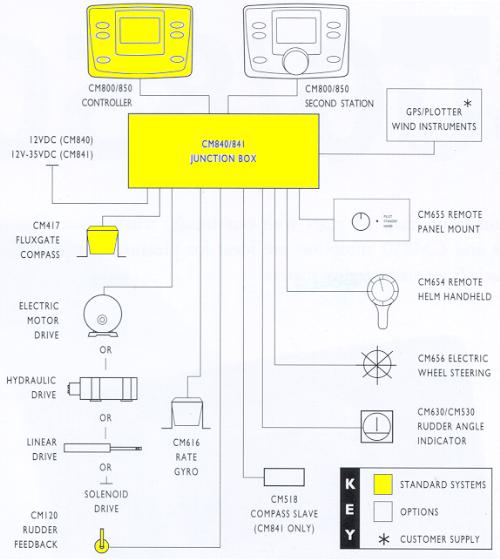

CM800 System Autopilot
SYSTEM SPECIFICATIONS
ENVIRONMENTAL: 0 deg. - 50 deg.C
STEERING SYSTEM TYPES: Hydraulic, Mechanical, Solenoid
POWER CONSUMPTION: Standby: 300mAmps @ 12 VDC

CM800/850 CONTROLLER
DIMENSION: 163mm x 116mm x 30mm
MOUNTING: Surface Mount, Bracket Mount
CABLE: 6m core shielded.

 CM840 JUNCTION BOX
INPUT VOLTAGE: 12 VDC Only
HEADING SENSOR: Coursemaster fluxgate compass & Rate gyro.
INTERFACE: NMEA 0183, 2 x inputs, 1 x output.
DIMENSIONS: 205mm x 140mm x 45mm
MOTOR DRIVE: 15A cont.
MOUNTING: Bulkhead Mount.

CM841 JUNCTION BOX
INPUT VOLTAGE: 12-32 VDC
HEADING SENSOR: Coursemaster fluxgate compass,
Magnetic heading sensor, NMEA heading input & Rate gyro.
INTERFACE: NMEA 0183, 2 x inputs, 1 x output.
DIMENSIONS: 270mm x 140mm x 45mm
MOTOR DRIVE: 25A cont.
MOUNTING: Bulkhead Mount.

 CM120 RUDDER FEEDBACK
DIMENSION: 97mm x 62mm (Arm145mm)
MOUNTING: Horizontal, vertical, inverted.
CABLE: 9m 3 core shielded cable.

 CM417 FLUXGATE COMPASS
OUTPUT: Sine/Cosine (and NMEA 0183)
ACCURACY: 2 degrees RMS
ROLL/PITCH: +/- 45 degrees.
DIMENSIONs: 120mm x 115mm
CABLE: 8m 5 core shielded cable.

CM655 REMOTE CONTROL
DIMENSIONS: 140mm x 90mm x 45mm
MOUNTING: Panel
CABLE: 9m - 6 core shielded cable.

 CM654 REMOTE CONTROL
DIMENSIONs: 155mm x 40mm
MOUNTING: Hannd held
CABLE: 9m - 6 core shielded cable.
NOTE: (25.4mm=1 inch)

 CM616 RATE GYRO
It provides a far steadier course than any autopilot
using only a fluxgate compass, and completely overcomes
any acceleration effects or magnetic fields influences.
DIMENSIONs: 120mm x 115mm
CABLE: 8m 5 core shielded cable.

 DRIVE UNITS:
MECHANICAL STEERING
A state of the art 12 or 24 volt DC
printed circuit motor with integral gearbox
and electro-magnetic clutch.

CM151 MECHANICAL DRIVE
VOLTAGE: 12 VOLT DC (avail. in 24 VDC)
TYPE: Reversing, Printed Circuit
TORQUE: 120kg/cm @ 30RPM
DIMENSION: 165mm x 160mm

 HYDRAULIC STEERING - A range of
self-contained reversing electro-hydraulic pump
kits as well as continous running pump kits to
suit various size hydraulic steering systems.

CM1212 HYDRAULIC PUMP
VOLTAGE: 12 volt dc (avail. in 24 VDC)
TYPE: Reversing
CAPACITY: 1.2 Ltr/Min
DIMENSION: 222mm x 120mm CM2012 HYDRAULIC PUMP VOLTAGE: 12 volt DC (avail. in 24 VDC) TYPE: reversing CAPACITY: 2 Ltr/Min DIMENSIONs: 222mm x 120mm  LINEAR DRIVES- A range of hydraulic linear drives to suit most vessels. CM1212HL LINEAR DRIVE VOLTAGE: 12 VOLT DC (avail. in 24 VDC) TYPE: Reversing Hydraulic STROKE: 300mm OPTIONS: Other options are available includingheavy duty rudder feedback, rudder angle indicators, electric wheel steering and remote alarm Contact your dealer for information on these other options. The specifications given above are correct at the time of publication. Coursemaster reservesthe right tomodify specifications in the interestof improving product quality.
