APEL MAR Distributore Ufficiale per l'Italia COURSEMASTER
ATTUATORI
Caratteristiche:
POMPE:

CM1012:
Alimentazione: 12V DC
Type: Reversing
Capacity: 1.0 Ltr/Min
Current draw: 5.5amp
Current @ 20% per hour
Weight: 3Kg

Adjustable Flow Rate
System Isolating valve
Anti noise rubber mount

CM1224:
Voltage: 24V DC
Type: Reversing
Capacity: 1.2 Ltr/Min
Current draw: 2.7amp
Current @ 20% per hour
Weight: 3Kg


Adjustable Flow Rate
System Isolating valve
Anti noise rubber mount

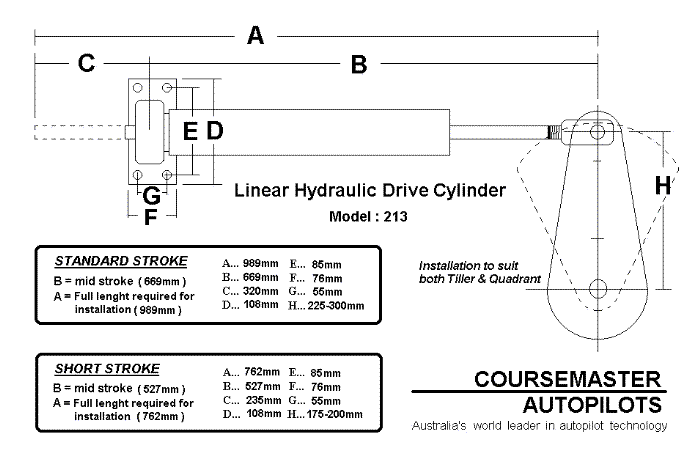

Cilindri:
213 Standard
Cylinder volume : 220cc
Full install lenght : 989mm
Mid stroke Lenght : 669mm
Stroke : 300mm
Max thurst : 520kg
Push rod end : 12.7mm Clevis

213 Short
Cylinder volume : 175cc
Full install lenght : 762mm
Mid stroke Lenght : 527mm
Stroke : 200mm
Max thurst : 390kg
Push rod end : 12.7mm Clevis

Per la definizione del tipo di attuatore più appropriato alla Vostra imbarcazione, contattare Apel Mar Technology s.r.l. o un rivenditore autorizzato che potrà consigliare l'autopilota e l'attuatore più adatti alla Vostra imbarcazione ed la Vostro utilizzo.
