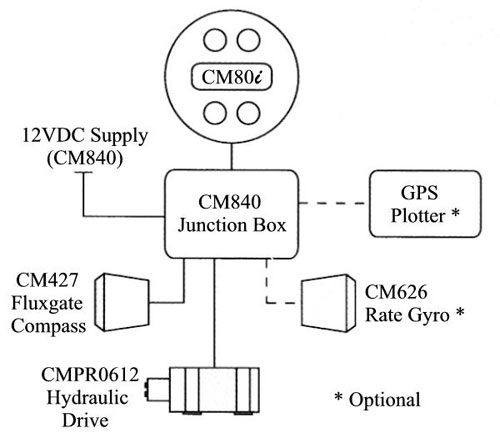

CM 80i AUTOPILOT SYSTEM
ENVIRONMENTAL: 0 - 50 degC
STEERING SYSTEM TYPES: Hydraulic
POWER CONSUMPTION: Standby: 300mAmps @ 12VDC
Pilot - 2.5amps @ 20% duty cycle
Using standard hydraulic pump

CM80i CONTROLLER
DISPLAY: Backlit LCD dot matrix
ALARMS: Off course, watch keeping, system
DIMENSIONS: 95mm x 55mm
MOUNTING: panel mount, bracket mount
CABLE: 4m

CM840 JUNCTION BOX
INPUT VOLTAGE: 12VDC
MOTOR DRIVE: 15Amp cont
HEADING SENSOR: Coursemaster fluxgate compass, rate gyro
INTERFACE: NMEA 0183, 2 x input, 1 x output
DIMENSIONS: 205mm x 140mm x 45mm

CM427 FLUXGATE COMPASS
OUTPUT: Sine/Cosine
ACCURACY: 2degrees RMS
ROLL/PITCH: +/- 35 degrees
DIMENSIONS: 95mm x 55mm
CABLE: 4m

CM626 RATE GYRO
An option which provides the latest technology in dynamic performance to counter acceleration effects caused by excessive vessel movement which results in an even smoother ride.
DIMENSIONS: 95mm x 55mm

HYDRAULIC DRIVE
CMPRO612
VOLTAGE: 12VDC
TYPE: Reversing
CAPACITY: 0.6L/min

These specifications are correct at the time of publication. Coursemaster reserves the right to modify specifications in the interest of improving product quality.
